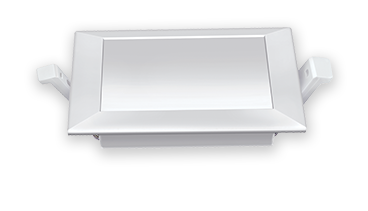

Ray Square Surface Panel LED - Downlight
These surface mounted LED edgelit downlights are intended for surface mounting applications. It has light guiding plate which aids in uniform distribution of light and has narrow flange that makes it aesthetically appealing.
-
Housing
Epoxy white powder coated die cast aluminium housing
-
Optics
Efficient PMMA front visor
-
Long Life
25000 hours at L70
-
Mounting
Surface mounting provision thru' mounting bracket
-
Available CCTs
Warm White : 3000K
Natural White : 4000K
White : 5700K
Cool White :6500K -
IB LED Assurance
Surge Protection >2.5KV
THD <20% -
Applications
Retail
Health Care
Education
Comercial
| Cat. Ref. | System Wattage (W) | Rated Input Voltage (VAC) | Input Current (A) | CRI | Power Factor | Case Lot |
|---|---|---|---|---|---|---|
| IRDLS21SQ-06XX | 6 | 240 | 0.0278 | >80 | >0.9 | 10 |
| IRDLS21SQ-12XX | 12 | 240 | 0.0556 | >80 | >0.9 | 10 |
| IRDLS21SQ-18XX | 18 | 240 | 0.0833 | >80 | >0.9 | 10 |
| IRDLS21SQ-24XX | 24 | 240 | 0.1111 | >80 | >0.9 | 10 |
